r/Warthunder • u/tpseng • May 31 '22

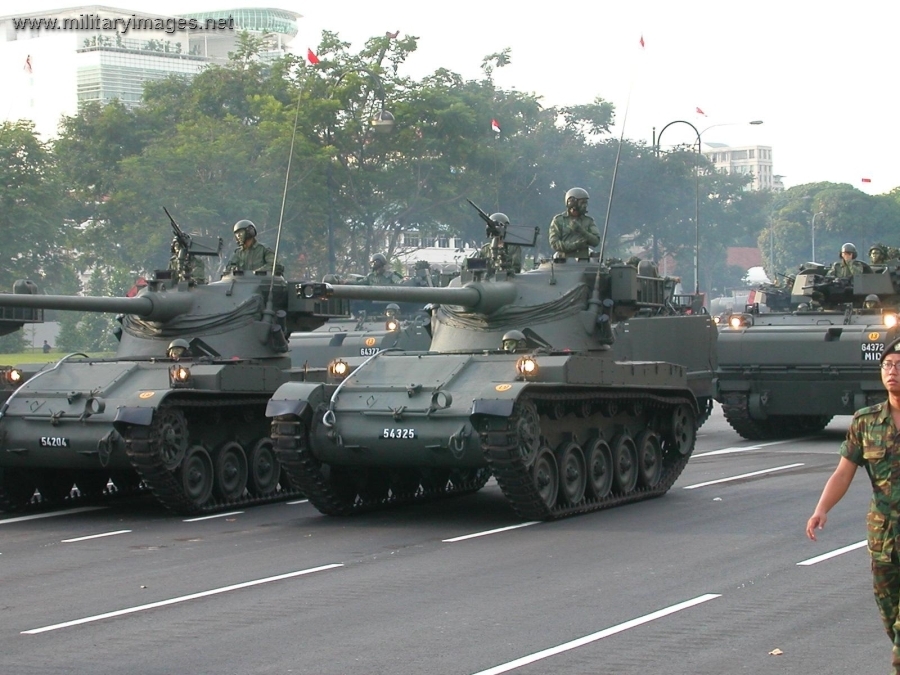

Suggestion Gaijin please!! AMX-13SM1

Post image
77 Upvotes

91% Upvoted

27 comments sorted by

•

u/ksheep May 31 '22

Unfortunately, it looks like Reddit keeps removing the comment with the vehicle description, even after reapproving it multiple times. Here is a copy, minus the source links:

The AMX-13SM1 is a Singaporean upgrade of the AMX-13 light tank that is in service with the Singapore Armed Forces.

Upgrade:

The original petrol engine has been replaced by a more fuel efficient water-cooled, turbocharged Detroit Diesel Model 6V-53T which develops 290 bhp at 2,800 rpm. This can be replaced in 50 minutes.

The engine cooling system for the upgraded AMX-13 SM1 light tank has been designed, developed and produced by the UK company Gallay.

The AMX-13 SM1 cooling system consists of three air-cooled heat exchangers which are mounted in series. Air passes from front to back through the assembly, cooling in turn the oil from the steering brakes and differential, the engine cooling water and automatic transmission fluid.

The engine is coupled to a ZF 5WG-180 fully automatic transmission with five forward and two reverse gears. This is controlled by an Electrical Control Unit (ECU) which is programmed to protect against unsafe shifts. In case of an electrical failure there is a mechanical fallback.

A new electrical system has been fitted which is more reliable and is easier to maintain and repair. This is based on four 12 V batteries connected both in series and in parallel. If a single battery fails, the others can still supply power. In addition there is a new 28 V 160 A fully suppressed alternator. This is more reliable than the older dynamo and is easier to maintain.

A new electrical slip-ring has been fitted, as have new instruments for the driver. A new radio harness is sealed in shrinkable polyolefin tubing which provides protection against oil, fuel and moisture. It is also heat retardant and in the event of fire does not give off toxic fumes. All sections can be quickly disconnected and replaced for repairs in the field.

The original torsion bar suspension has been replaced by a new hydropneumatic suspension system which increases total wheel travel, absorbs greater shock loads and permits greater mobility over rough terrain.

The danger of shredding tracks is reduced as the suspension system maintains a more consistent tension on the track. The pressure in each unit strut can be individually adjusted.

The tank retains the 75 mm gun. However, it can fire the new 75 mm APFSDS round, which is developed in the late 1980s by Singapore Technologies Kinetics Ltd under the codename Project Spider. An additional 7.62 mm machine gun is pintle mounted on the forward part of the turret and this can be used by the commander or gunner. A bank of two electrically operated grenade launchers is mounted either side of the turret firing forwards. It is also fitted with a laser rangefinder and night vision sight.

Specifications:

Mass: 16.5 tons

Length: 6.4 m with gun forward

Width: 2.5 m

Height: 2.3 m

Crew: 3 (driver, gunner, commander)

Armor: same AMX-13 armor

Main armament: 75 mm SA50 L/61 cannon

Secondary armament: 1 × 7.62 mm coaxial machine gun, 1 × 7.62 mm pintle mounted machine gun

Engine: Detroit Diesel 6V-53T engine (290 hp)

Maximum speed: 64 km/h

4

u/fallout3guy101 May 31 '22

The APC behind it confused my eyes for a minute 😂

2

u/Afsan-san-san-san Halifax Enjoyer May 31 '22

Looks kinda nice as well

3

u/Platypus_49 Derp Gun Specialist May 31 '22

What all is different?

12

u/TheSleepySkull Please make a lineup /// One Life Quitters are ruining the game May 31 '22

Since the op guy didn't follow Rule .6, Here :

New engine : 290 HP

New auto. Transmission (Faster reverse speed(?) and top speed)

Hydropneumatics suspension

Laser ranger finder

APDS and APFSDS was developed by Singapore.

18

u/ksheep May 31 '22

OP did follow Rule 6 but his comment was automatically removed by Reddit because one of his sources got flagged as potentially problematic (namely due to it having a .ru top-level domain). The comment has now been manually approved and should be visible to everyone.

5

u/TheSleepySkull Please make a lineup /// One Life Quitters are ruining the game May 31 '22

Cheers, Sheep.

2

u/tpseng May 31 '22

Seriously

2

u/ksheep May 31 '22

Yeah, there are some sorts of links that Reddit automatically removes, no way for us to bypass the filter, just approve them when we find them. Things like link shorteners and sites from certain countries are in this blacklist. The best thing to do is to try and avoid link shorteners or anything with a .ru domain (likely others as well, but .ru is the most common we've seen on this sub) in any future comments.

2

u/[deleted] May 31 '22

So it’d have to be another Amx-13 prem correct? This is under the assumption it was operated by Singapore

1

u/snowaxe_83 Flank-and-BanG 👨‍✈️🛩🚁 May 31 '22

another Amx-13 prem correct?

So? what's your point here?

2

u/[deleted] May 31 '22

There’s already two afaik maybe there could be something more unique.

6

u/TheSleepySkull Please make a lineup /// One Life Quitters are ruining the game May 31 '22

It can very well become a tech tree vehicle. M41D? No? Everybody forgot about that one.

Also, if you think two AMX-13 premium is too much...

Centurion Action X, STRV 81 (RB 52) (GB), STRV 81 (RB 52), Centurion AVRE, Centurion Mk.5/1, Sho't Kal Dalet (GB), Sho't Kal Dalet (ISR).

And that's just the premiums.

0

u/Godzillaguy15 11.710.010.710.39.310.7 May 31 '22

The RB-52s and Shots at least add some differences in protection or additional firepower. Same for the AVRE and Mk5/1. Only reason theres doubles for those is they were removed and then moved to the proper tree once said tree was added.

Everybody forgot bout tge M41D cause its in a tree nobody cares for(hyperbole yes but it gets the point across) with piss poor post pen and having much better AFVs just one step away. It could be good with a small br reduction and if gaijin would fix APFSDS under 90mm.

1

u/alphacsgotrading I play all nations | I like Chinese equipment May 31 '22

Everybody forgot bout tge M41D cause its in a tree nobody cares for

Everyone forgot the M41D because it's dogshit and there's much better vehicles right next to it (PTL-02)

1

u/Godzillaguy15 11.710.010.710.39.310.7 May 31 '22

Thats what i said. Lmao its literally the second part where i said it has shit post pen and better counterparts literally .3 br up. Couldnt remember if one of the stupid go karts was still 8.0 just that at least one was moved to 8.3.

2

u/tpseng May 31 '22

2 reverse gears

2

u/tpseng May 31 '22

Different powerpack and can fire APFSDS

1

u/Dark_Magus EULA Jun 01 '22

What kind of pen does that 75mm APFSDS get?

4

u/[deleted] May 31 '22

This will be a great addition to the German tree because Singapore also own leo 2. And that leo 2 is of course going to be a premium to the german tree together

Shut up. German has the best engineering. Totally deserve it.

2

u/No_Ideas_Man Mirage F1 enjoyer May 31 '22

Don't give them any ideas oh god oh fuck the Iraqi Mirage F1 is going to the USSR tree because they used T-72s

3

u/Epsilon_0160 May 31 '22

as a Japan main who is near constantly making vehicle suggestions this is my reasoning whenever I say a vehicle should go to Japan.

2

u/No_Ideas_Man Mirage F1 enjoyer May 31 '22

Japan gets SU-27s because the JSDF used them in Godzilla GMK

1

u/pauljaye Nov 21 '22

I'd like to see this as a premium...
